FFC1108-1 Alarm 100M Portable Sonar Fish Finders 45 Degrees Sonar Coverage Echo Sounder Alarm Transducer Lake Sea Fishing
FFC1108-1 Alarm 100M Portable Sonar Fish Finders 45 Degrees Sonar Coverage Echo Sounder Alarm Transducer Lake Sea Fishing
Couldn't load pickup availability
SPECIFICATIONS
Back lighting: On/off White LED Brand Name: LUCKYLAKER Choice: yes Depth Capability of FFC1108-1: 328 feet( 100 m) Depth Capability of FFCW1108-1: 130feet(45m) Detecting Range: 0.6-183 Meter Display: 2inch TN/ANTI-UV LCD High-concerned chemical: none Language: English Manual Approved Language: English&Russian&German&Japanese Origin: Mainland China Power Input: AAA Power Source: No. 7 Battery Power requirement: 4* AAA batteries Sonar Coverage: FFC1108-1:45 degrees, FFCW1108-1:90 degrees,45 degrees beam angle in 200Khz of FFC1108-1 Sonar Frequency: Cable: 200Khz Waterproof design: Level-4 (spray-water-proof) semi_Choice: yes
2) Back lighting: White LED
3) Depth Capability: 328feet(100m)
4) Power Requirement: 4xAAA alkaline batteries（not included）
5) Waterproof design: level-4 (spray-water-proof)
6) Show water depth, fish location, and bottom grass & rock
7) User selectable sensitivity,depth units, and fish alarm setting

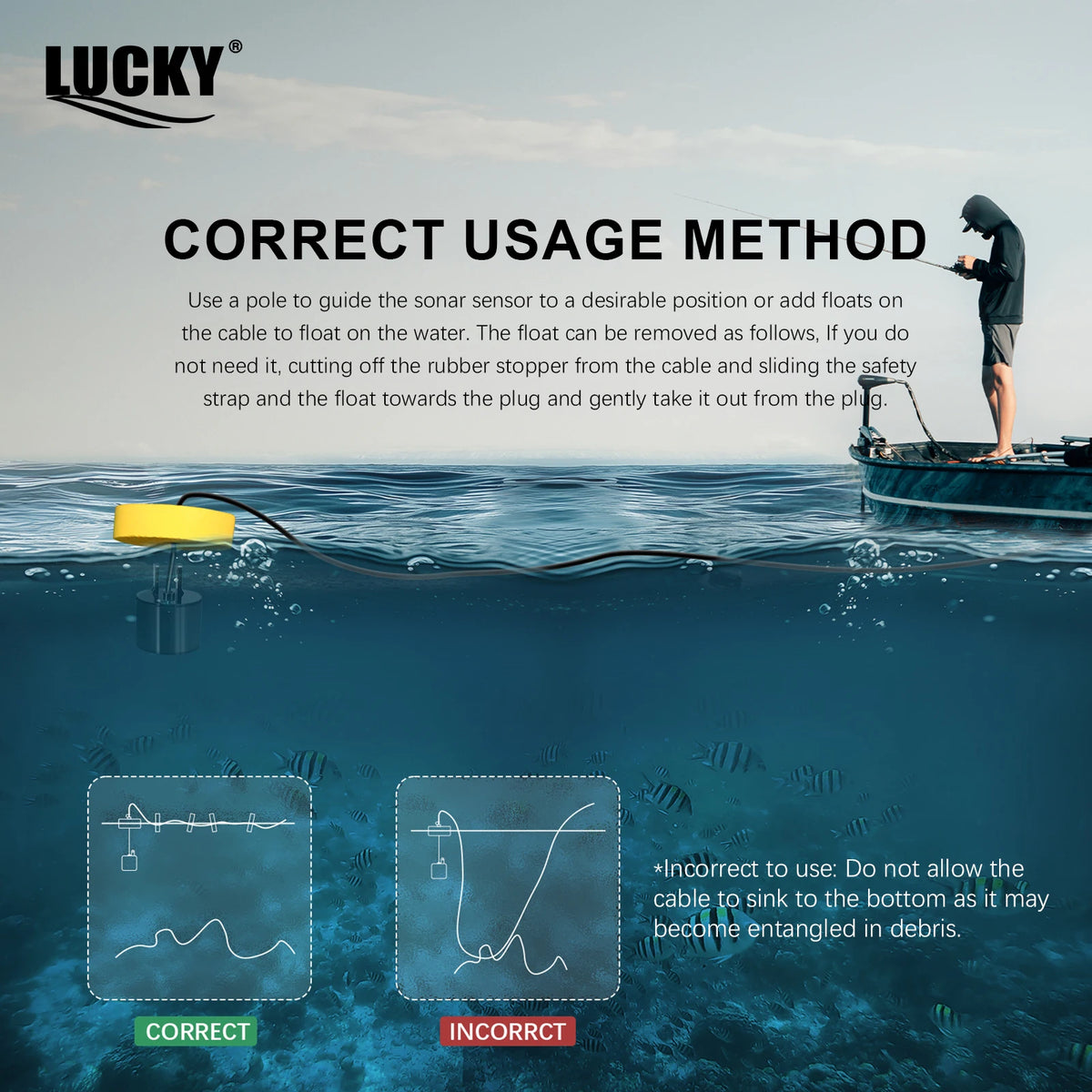

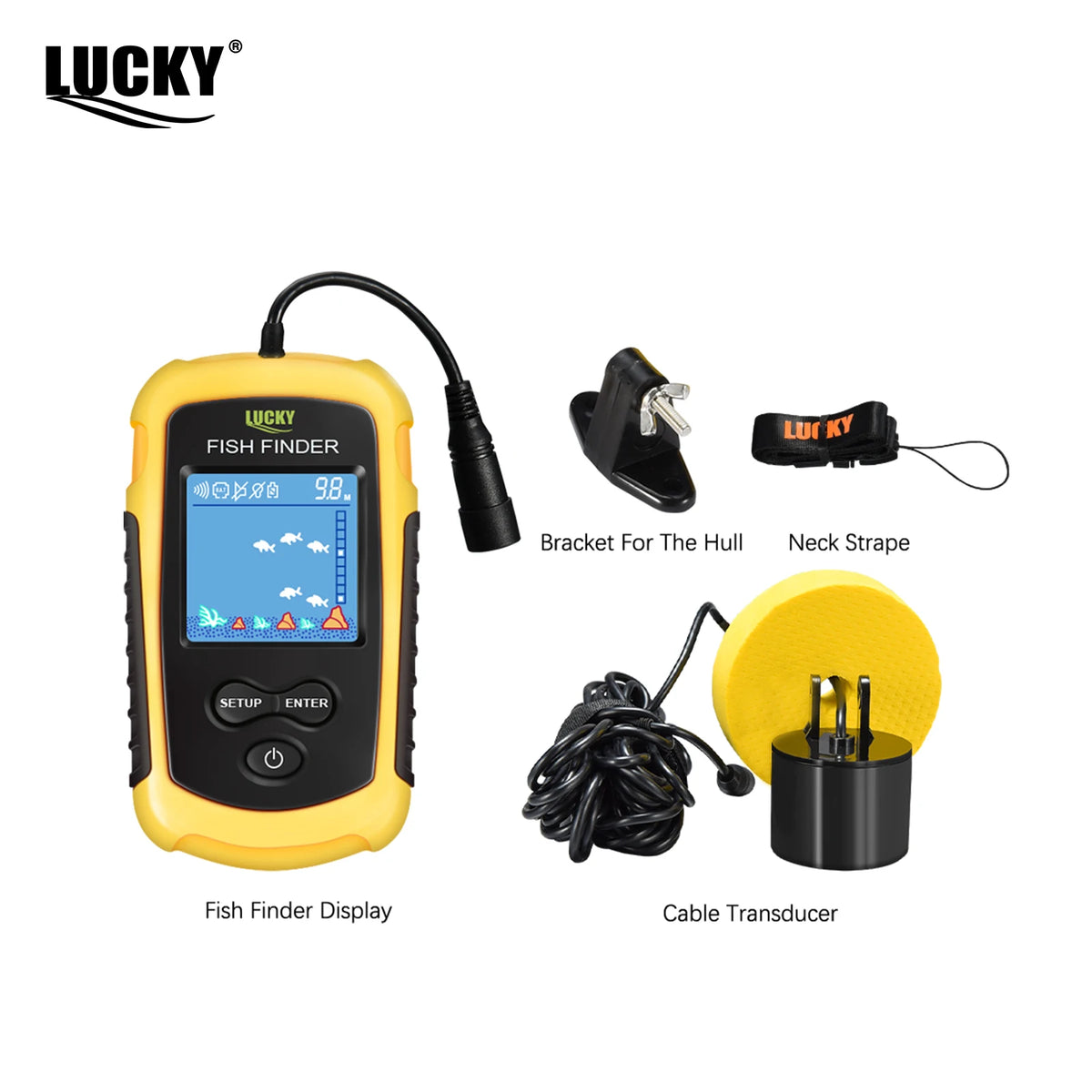

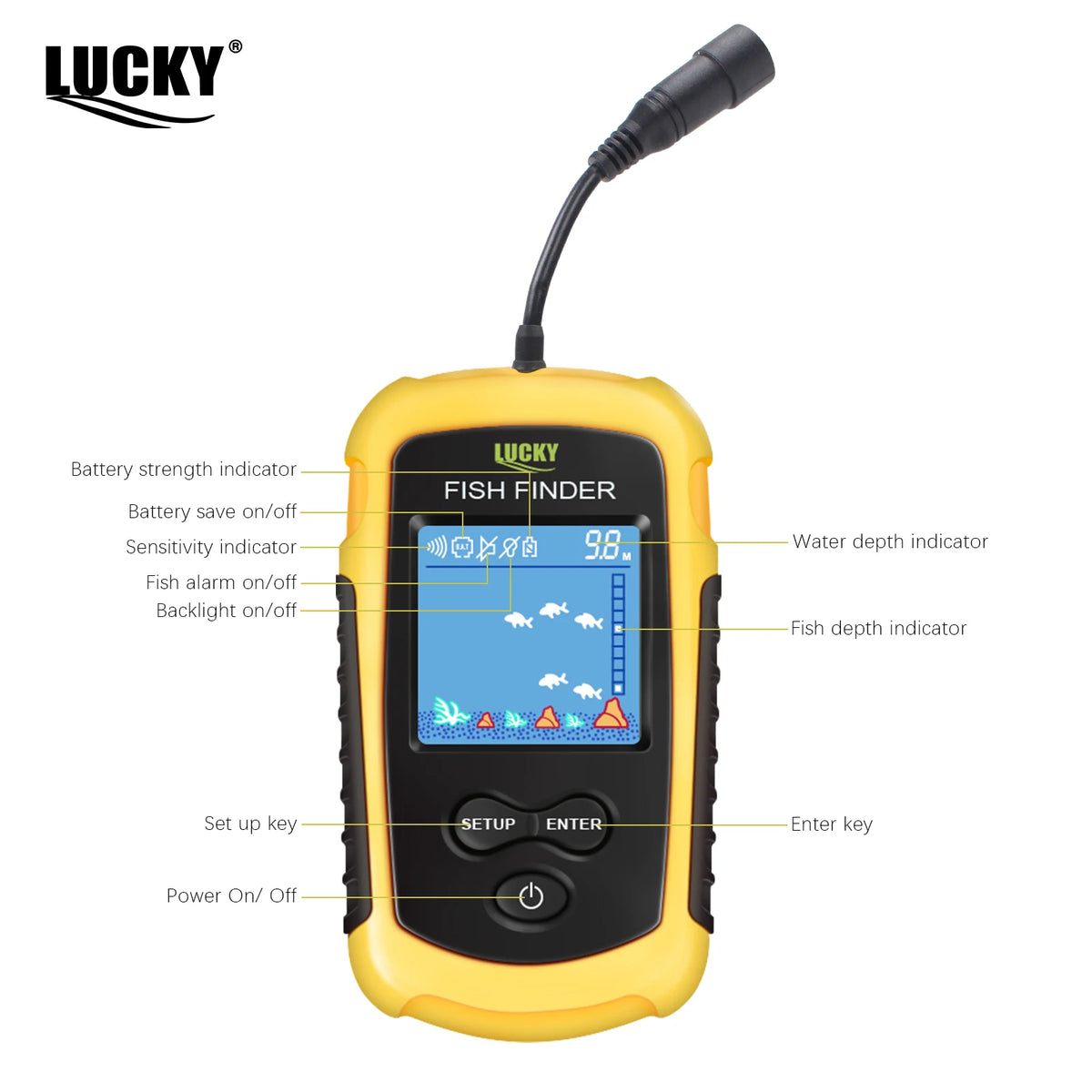

8) Operational Temperature: 14degF to 122degF(-10degC to 50degC) 1.Adjust the sensor float to be at least 18 centimeters away from the sensor.2.Connect the probe and receiver and place the probe into the water.3.Turn on the receiver.Detection depth of 100m/328ft1.Battery strength indicator2.Battery save on/off3.Sensitivity indicator4.Fish alarm on/off5.Backlight on/off6.Set up key7.Power On/ Off8.Water depth indicator9.Fish depth indicator10.Enter key1.Float2.Transducer3.CableFind fish in lakes, ponds and rivers. Cast from dock, shore, bank or kayak.View water depth, water temperature,

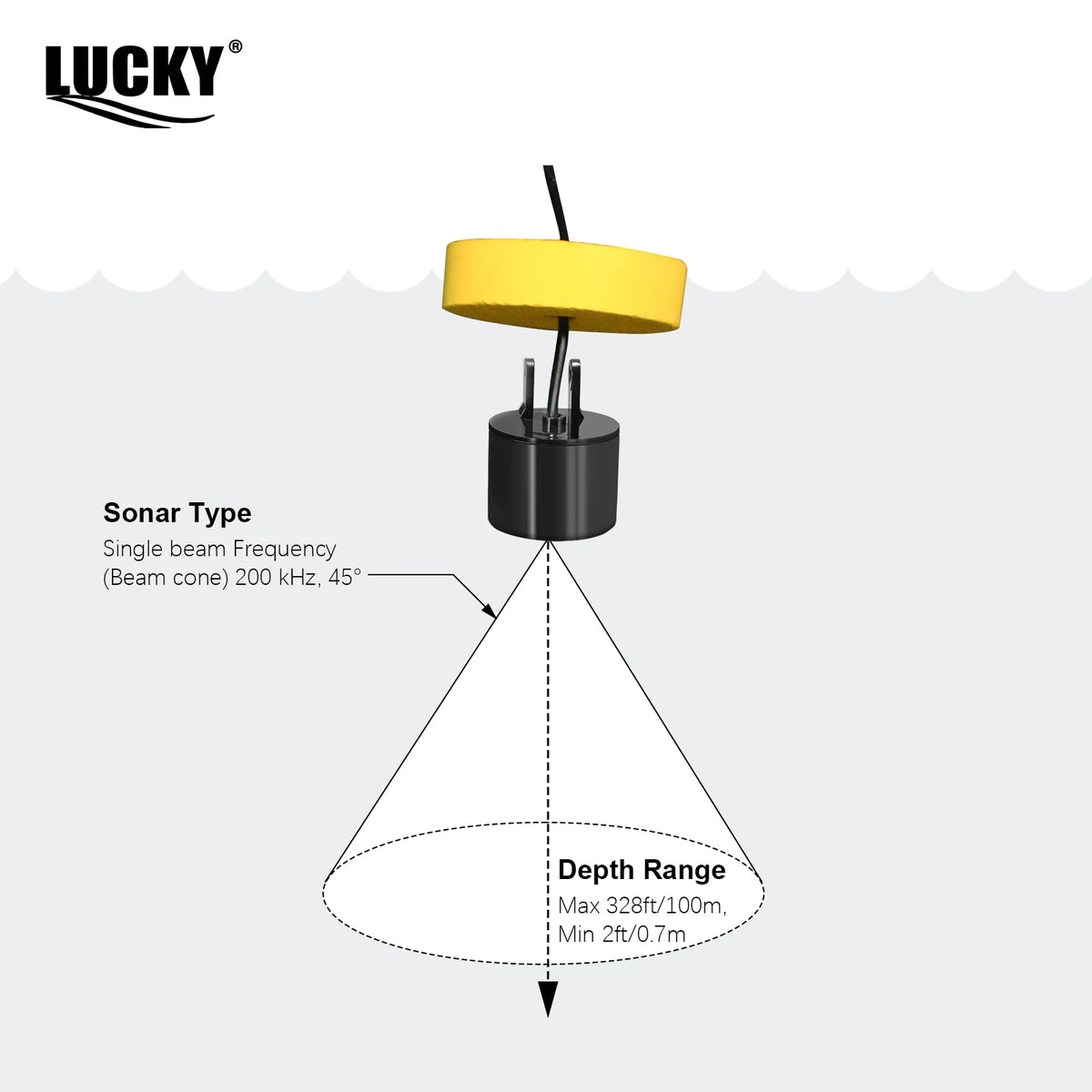

through a receiver.1) Display: 2 inch LCD2) Sonar coverage: 45° in 200KHz3) Depth capacity: 0.7M-100M4) Power: 4 x AAA batteries (NOT included)5) Net weight: 163g / 5.7oz6) Operational Temperature: 14°F to 122°F (-10°C to 50°C)
2.Turbid Water Probe
3.Ice Fishing Probe Attention: 1.Kindly remind that FFC1108-1 has only wired mode, and you cannot match the sensor and monitor randomly.
2.Use fish finder in smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the the detection can be inaccurate.
Please use fish finder in outdoor deep water.
3.The monitor cannot display the size of the fish.
4.Manual:English/German/Russian/Japanese
